Name: Driverless Bi Directional Tunnel AGV Auto Guided Vehicle 10 Years Long Life Time
Brand: CASUN
SKU: QFS2100V2

Home Products Bi Directional Tunnel AGV

Driverless Bi Directional Tunnel AGV Auto Guided Vehicle 10 Years Long Life Time

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS2100V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFS2100V2	Dimensions:	L2100W420H168mm
Load Capacity:	500Kg-800kg	Minimum Turning Radius:	Min 900mm
Travel Speed:	0-35m/min(Or Customizing))	Ramp:	≤2°
Communication:	RF Or Wifi	Guidance:	Magnetic Guidance
Power:	DC24V	Travel Direction:	Forward, Backward, Left/right Turning & U Turn
Guiding Accuracy:	±10mm	Stopping Accuracy:	±10mm
Workable:	24 Hours By Optimizing Automatic Charging	Charging Method:	Manual Charging, Automatic Charging
Alarm:	Sound And Visual	Battery:	Lead-acid Battery, Lithium Battery
Life Time:	≥10 Years	Detection Range:	≤3m
High Light:	automatic guided vehicle , smart cart agv

Driverless Robots Submarine AGV Two Way Track Guidance Lurking Type for Plastic Industry

1. Product Description:

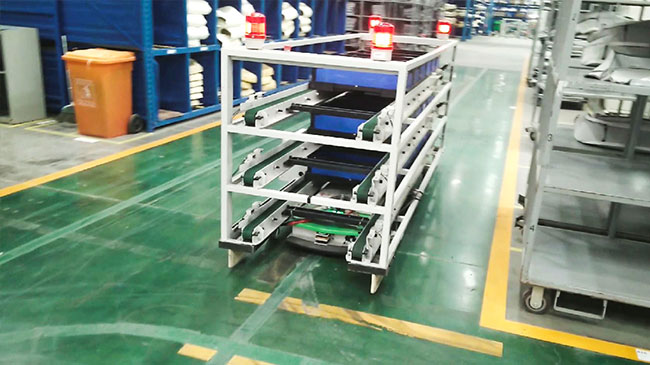

The AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the car, can reciprocate in a single channel.

2. Application:

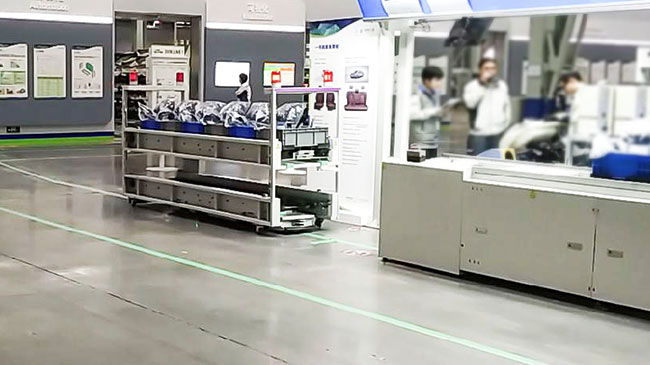

Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics.

Driverless Bi Directional Tunnel AGV Auto Guided Vehicle 10 Years Long Life Time

3. Specifications:

Product name	Driverless Robots Submarine AGV Two Way Track Guidance Lurking Type for Plastic Industry (Ultra Low Type)
Model	QFS2100V2

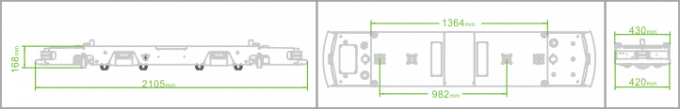

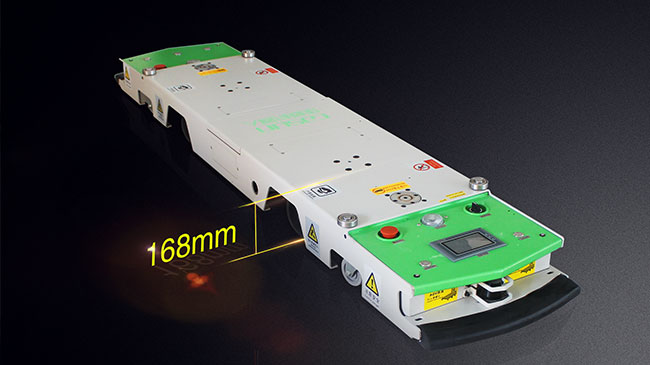

Dimensions	L2100W420H168mm
Load capacity	500Kg/800kg
Minimum turning radius	min 900mm
Guidance	Magnetic guidance
Travel Direction	Forward, backward, left/right turning & U turn
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
