Name: Packing Industry Bi Directional Tunnel AGV Auto Guided Vehicle Customized Travel Speed
Brand: CASUN
SKU: QFS2100V2

Home Products Bi Directional Tunnel AGV

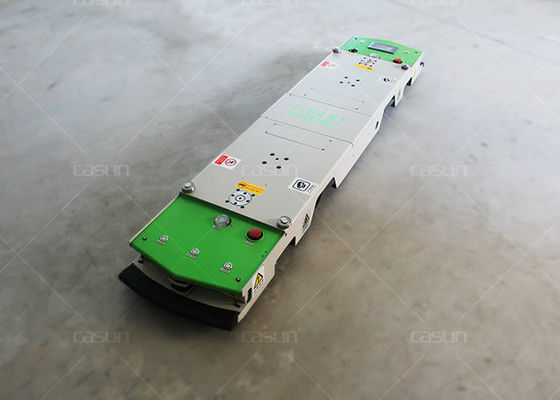

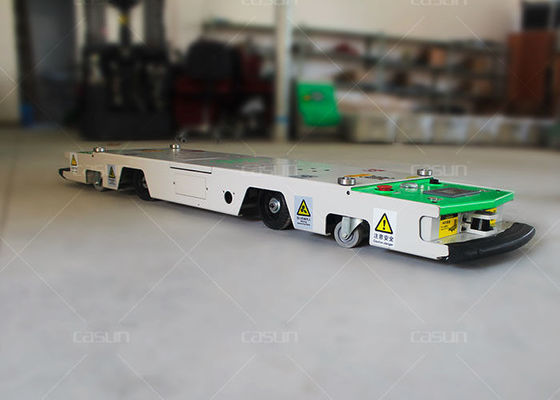

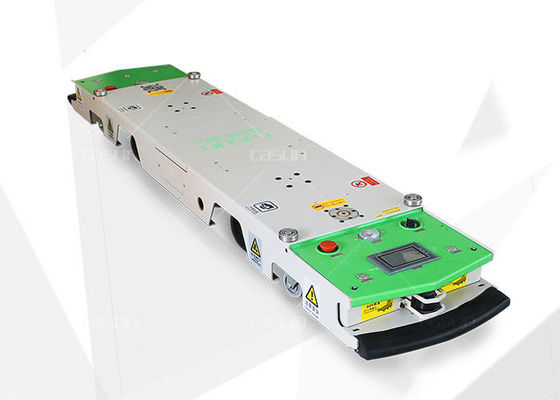

Packing Industry Bi Directional Tunnel AGV Auto Guided Vehicle Customized Travel Speed

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS2100V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFS2100V2	Dimensions:	L2100W420H168mm
Load Capacity:	500Kg-800kg	Minimum Turning Radius:	Min 900mm
Travel Speed:	0-35m/min(Or Customizing))	Ramp:	≤2°
Communication:	RF Or Wifi	Guidance:	Magnetic Guidance
Driving Mode:	Differential Driving	Type:	Tunnel Type
Guiding Accuracy:	±10mm	Stopping Accuracy:	±10mm
Workable:	24 Hours By Optimizing Automatic Charging	Charging Method:	Manual Charging, Automatic Charging
Battery:	Lead-acid Battery, Lithium Battery	Life Time:	≥10 Years
High Light:	automated guided carts , smart cart agv

Laser Obstacle Sensor AGV Transfer Cart Bi-direction Magnetic Tape Trailer Loading for Packing Industry

1. Product Description:

The AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the car, can reciprocate in a single channel.

2. Application:

Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics.

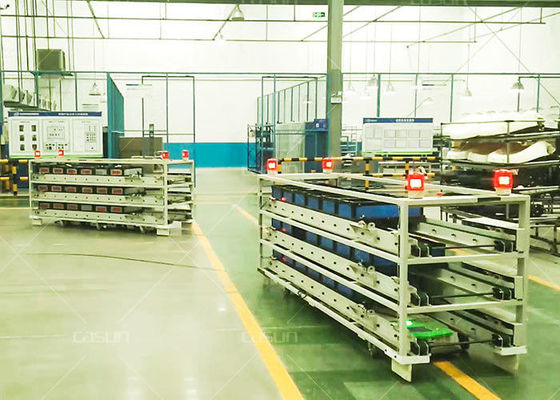

Packing Industry Bi Directional Tunnel AGV Auto Guided Vehicle Customized Travel Speed

3. Specifications:

Product name	Laser Obstacle Sensor AGV Transfer Cart Bi-direction Magnetic Tape Trailer Loading for Packing Industry (Ultra Low Type)
Model	QFS2100V2
Dimensions	L2100W420H168mm
Load capacity	500Kg/800kg
Minimum turning radius	min 900mm
Guidance	Magnetic guidance
Travel Direction	Forward, backward, left/right turning & U turn
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
