Name: Ultra Low Type Bi Directional Tunnel AGV Smart Cart Two Way Rail For Cold Sorting Center
Brand: CASUN
SKU: QFS2100V2

Home Products Bi Directional Tunnel AGV

Ultra Low Type Bi Directional Tunnel AGV Smart Cart Two Way Rail For Cold Sorting Center

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS2100V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFS2100V2	Dimensions:	L2100W420H168mm
Load Capacity:	500Kg-800kg	Minimum Turning Radius:	Min 900mm
Travel Speed:	0-35m/min(Or Customizing))	Ramp:	≤2°
Communication:	RF Or Wifi	Guidance:	Magnetic Guidance
Driving Mode:	Differential Driving	Power:	DC24V
Type:	Tunnel Type	Travel Direction:	Forward, Backward, Left/right Turning & U Turn
Guiding Accuracy:	±10mm	Stopping Accuracy:	±10mm
Workable:	24 Hours By Optimizing Automatic Charging	Charging Method:	Manual Charging, Automatic Charging
Alarm:	Sound And Visual	Battery:	Lead-acid Battery, Lithium Battery
High Light:	automated guided carts , smart cart agv

Mobile Automation Submarine AGV Two Way Rail Guidance Lurking Type for Cold Sorting Center

1. Product Description:

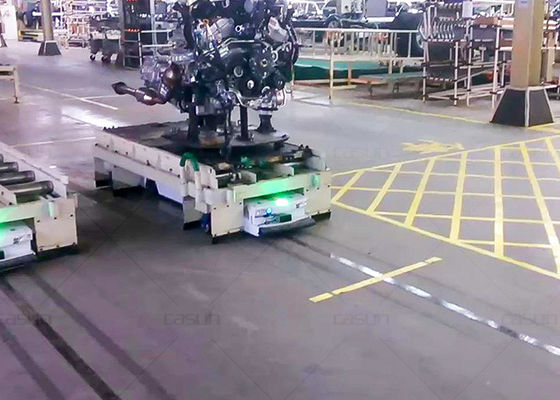

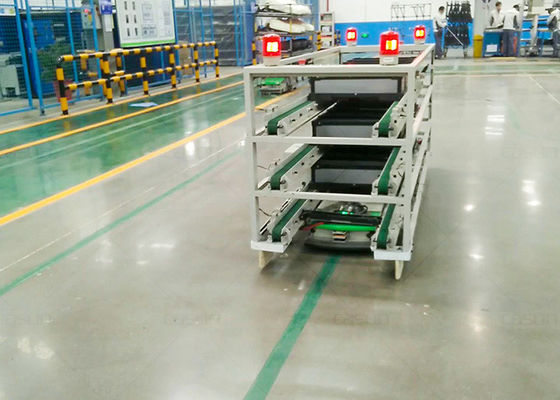

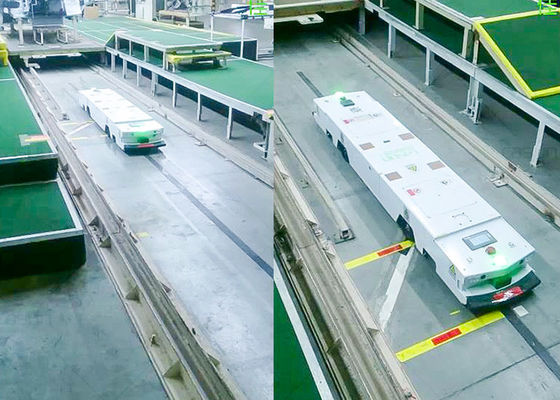

The AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the car, can reciprocate in a single channel.

2. Application:

Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics.

Ultra Low Type Bi Directional Tunnel AGV Smart Cart Two Way Rail For Cold Sorting Center

3. Specifications:

Product name	Mobile Automation Submarine AGV Two Way Rail Guidance Lurking Type for Cold Sorting Center (Ultra Low Type)
Model	QFS2100V2
Dimensions	L2100W420H168mm
Load capacity	500Kg/800kg
Minimum turning radius	min 900mm
Guidance	Magnetic guidance
Travel Direction	Forward, backward, left/right turning & U turn
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
