Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space

Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space

    • Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space
    • Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space
  • Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space

    Product Details:

    Place of Origin: China, Shenzhen
    Brand Name: CASUN
    Model Number: QFS2100V2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD
    Packaging Details: Wooden case
    Delivery Time: 35 days
    Supply Ability: 200 units / month
    Contact Now
    Detailed Product Description
    Model: QFS2100V2 Dimensions: L2100*W420*H168mm
    Load Capacity: 500Kg-800kg Minimum Turning Radius: Min 900mm
    Travel Speed: 0-35m/min(Or Customizing)) Ramp: ≤2°
    Communication: RF Or Wifi Guidance: Magnetic Guidance
    Driving Mode: Differential Driving Power: DC24V
    Type: Tunnel Type Travel Direction: Forward, Backward, Left/right Turning & U Turn
    Guiding Accuracy: ±10mm Stopping Accuracy: ±10mm
    Workable: 24 Hours By Optimizing Automatic Charging Charging Method: Manual Charging, Automatic Charging
    Alarm: Sound And Visual Battery: Lead-acid Battery, Lithium Battery
    Life Time: ≥10 Years Detection Range: ≤3m
    High Light:

    automated guided carts

    ,

    smart cart agv

    Bidirectional Magnetic Tape AGV Tunnel Type AGV Ultra Low Type for Material Handling Solution



    1. Product Description:

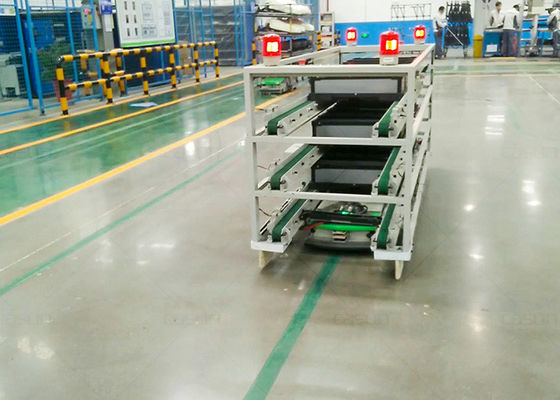

    The AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the car, can reciprocate in a single channel.



    2. Application:

    Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics.

    Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space
















    3. Specifications:

    Product name Two Way Tunnel Type AGV (Ultra Low Type)
    Model QFS2100V2
    Dimensions L2100*W420*H168mm
    Load capacity 500Kg/800kg
    Minimum turning radius min 900mm
    Guidance Magnetic guidance
    Travel Direction Forward, backward, left/right turning & U turn
    Travel speed 0-35m/min(Or customizing))
    Guiding accuracy ±10mm
    Stopping accurac ±10mm
    Communication available RF / Wifi
    Driving mode Differential driving
    Power DC24V
    Workable 24 hours by optimizing automatic charging
    Ramp ≤2°
    Type Tunnel type
    Charging method Manual charging / automatic charging
    Battery Lead acid battery / lithium battery
    Life time ≥10 years
    Alarm Sound and visual
    Safety features Front obstacle sensor+mechanical bumper sensor
    Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm



    4. Advantages:

    • Two way driving in a limited space
    • Easily lurk under the trolleys, racks, etc

    Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited SpaceBidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space

    Bidirectional AGV Magnetic Tape , AGV Material Handling Ultra Low For Limited Space
