Name: Assembly Line Automated Guided Carts Single Way Steering Drive With High Accuracy
Brand: CASUN
SKU: QYD1185V2

Home Products Unidirectional Tugger AGV

Assembly Line Automated Guided Carts Single Way Steering Drive With High Accuracy

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QYD1185V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Product Name:	Single Way Tugger Type AGV	Model:	QYD1185V2
Dimensions:	L1180W500H645(mm)	Load Capacity:	2000kg
Travel Speed:	0-45m/min(Or Customizing))	Ramp:	≤2°
Guidance:	Magnetic Guidance	Travel Direction:	Forward, Backward, Left/right Turning & U Turn
Guiding Accuracy:	±10mm	Stopping Accurac:	±10mm
Driving Mode:	Steering Drive	Power:	DC24V
Workable:	24 Hours By Optimizing Automatic Charging	Life Time:	≥10 Years
Stopping Accuracy:	±10mm	Alarm:	Sound And Visual
Charging Method:	Manual Charging, Automatic Charging
High Light:	tugger agv , agv towing vehicle

Traction Automated Guided Cart Magnetic Strip Unidirectional Steering Drive for Assembly Line

1. Product Description:

Single Way Tugger Type AGV (Steering Wheel Drive)has towing capacity of more than 2 tons, ater arriving to designated spot, hang the skip on the drawhook manually, AGV draw the skip to another designated spot through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the skip automatically. It can draw a couple of skips at a time and have the function of multi-site stopping.

2. Application:

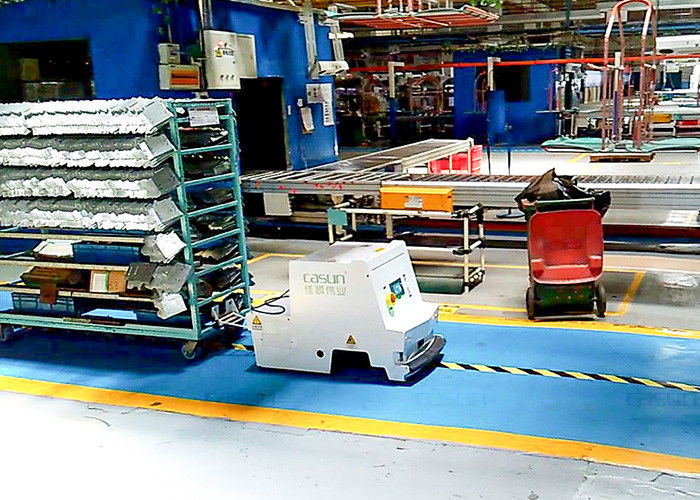

AGV project has implemented in AUX ( home appliance company )

3. Specifications:

Product name	Traction Automated Guided Cart Magnetic Strip Unidirectional Steering Drive for Assembly Line
Model	QYD1185V2
Dimensions	L1080W420H625(mm)
Load capacity	2000kg
Minimum turning radius	min 600mm
Guidance	Magnetic guidance
Travel Direction	Forward, backward, left/right turning & U turn
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Steering driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tugger type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
