Product Details:

Place of Origin: China, Shenzhen
Brand Name: CASUN
Model Number: QY1250V1

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden case
Delivery Time: 35 days
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Name: Single Way Tugger Type AGV (L Type) Model: QY1250V1
Dimensions: L1250xW450xH890(mm) Load Capacity: 500Kg/1000kg
Travel Speed: 0-45m/min(Or Customizing)) Guiding Accuracy: ±10mm
Guidance: Magnetic Guidance Minimum Turning Radius: Min 600mm
Travel Direction: Forward, Turn Left And Right, Branch Stopping Accurac: ±10mm
Driving Mode: Differential Driving Ramp: ≤2°
Charging Method: Manual Charging / Automatic Charging Battery: Lead Acid Battery / Lithium Battery
Life Time: ≥10 Years Alarm: Sound And Visual
Safety Features: Front Obstacle Sensor+mechanical Bumper Sensor
High Light:

tugger agv

,

agv towing vehicle

Tugger Type AGV Mobile Rail Guidance One Way Mobile Automation for Cold Sorting Center



1. Product Description:

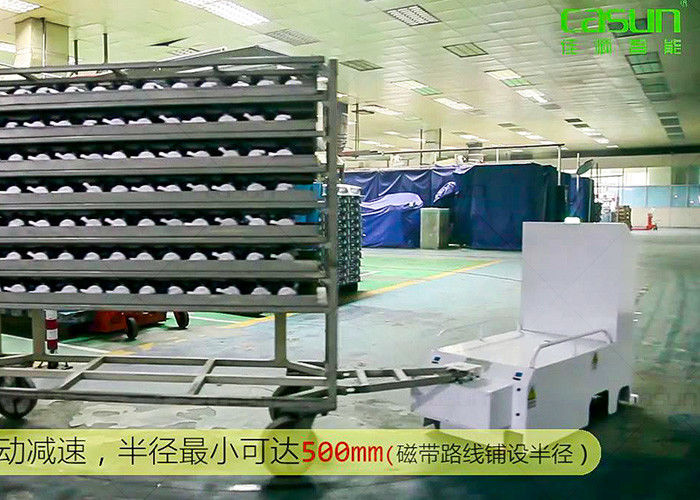

One-way tugger type AGV(L- type) can draw skip using the rear device and load the pallet, rack, workbin,etc . on the back at the same time. AGV draw the trolley to designated spot through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the trolley automatically. It can draw a couple of trolley at a time and have the function of multi-site stopping.



2. Application:

Widely used for intralogistics solution for loading and uploading materials.



3. Typical Cases:

  • Floor-stepped over project ( into and out of the elevator automatically ) in Midea Group
  • AGV project in Wuyang Honda Corporation
  • AGV project in Gree Group ( Wuhan )

One Way Tugger AGV , Rail Guided Vehicle 500Kg/1000kg Loading For Cold Sorting Center



4. Specifications:

Product name Tugger Type AGV Mobile Rail Guidance One Way Mobile Automation for Cold Sorting Center (L Type)
Model QY1250V1
Dimensions L1250xW450xH890(mm)
Load capacity 500Kg/1000kg
Minimum turning radius min 600mm
Guidance Magnetic guidance
Travel Direction Forward, turn left and right, branch
Travel speed 0-45m/min(Or customizing))
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available RF / Wifi
Driving mode Differential driving
Power DC24V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Type Tugger type
Charging method Manual charging / automatic charging
Battery Lead acid battery / lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm



5. Advantages:

  • One AGV transport more than 1 racks
  • Communicate with elevator automatically

One Way Tugger AGV , Rail Guided Vehicle 500Kg/1000kg Loading For Cold Sorting Center

One Way Tugger AGV , Rail Guided Vehicle 500Kg/1000kg Loading For Cold Sorting Center

One Way Tugger AGV , Rail Guided Vehicle 500Kg/1000kg Loading For Cold Sorting Center
