Automatic Charging DC24V Unidirectional Tugger AGV Magnetic Sensor Guidance

Automatic Charging DC24V Unidirectional Tugger AGV Magnetic Sensor Guidance

Automatic Charging DC24V Unidirectional Tugger AGV Magnetic Sensor Guidance

Product Details:

Place of Origin: China, Shenzhen
Brand Name: CASUN
Model Number: QYD1185V2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden case
Delivery Time: 35 days
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Product Name: Single Way Tugger Type AGV Model: QYD1185V2
Dimensions: L1180*W500*H645(mm) Load Capacity: 2000kg
Travel Speed: 0-45m/min(Or Customizing)) Ramp: ≤2°
Minimum Turning Radius: Min 500mm Guidance: Magnetic Guidance
Travel Direction: Forward, Backward, Left/right Turning & U Turn Guiding Accuracy: ±10mm
Stopping Accurac: ±10mm Communication: RF / Wifi
Driving Mode: Steering Drive Power: DC24V
Workable: 24 Hours By Optimizing Automatic Charging
High Light:

tugger agv

,

agv towing vehicle

Tugger Backpack AGV Magnetic Guidance Single Way Material Trolley for Rack Handling



1. Product Description:

Single Way Tugger Type AGV (Steering Wheel Drive)has towing capacity of more than 2 tons, ater arriving to designated spot, hang the skip on the drawhook manually, AGV draw the skip to another designated spot through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the skip automatically. It can draw a couple of skips at a time and have the function of multi-site stopping.



2. Application:

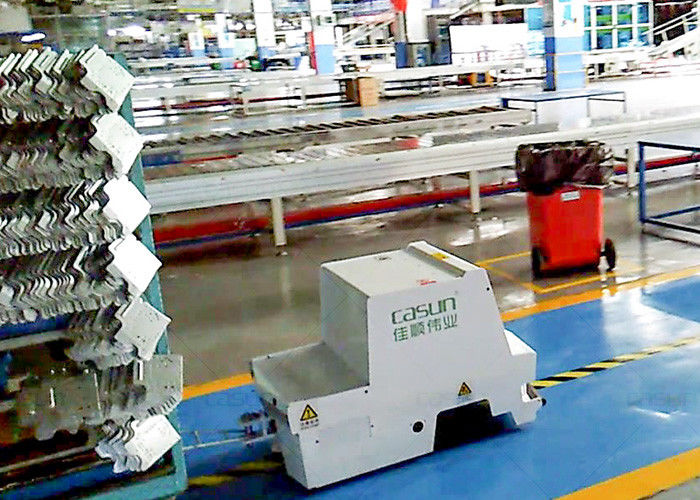

 AGV project has implemented in AUX ( home appliance company )
Automatic Charging DC24V Unidirectional Tugger AGV Magnetic Sensor Guidance



















3. Specifications:

Product name Tugger Backpack AGV Magnetic Guidance Single Way Material Trolley for Rack Handling
Model QYD1185V2
Dimensions L1080*W420*H625(mm)
Load capacity 2000kg
Minimum turning radius min 600mm
Guidance Magnetic guidance
Travel Direction Forward, backward, left/right turning & U turn
Travel speed 0-45m/min(Or customizing))
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available RF / Wifi
Driving mode Steering driving
Power DC24V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Type Tugger type
Charging method Manual charging / automatic charging
Battery Lead acid battery / lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm



4. Advantages:

  • Towing payload up to 2T
  • Connect the rack and transport
  • Drop off the rack automatically.

Automatic Charging DC24V Unidirectional Tugger AGV Magnetic Sensor Guidance

Automatic Charging DC24V Unidirectional Tugger AGV Magnetic Sensor Guidance
