One Way Automated Guided Vehicle Hospital , Smart Cart AGV With Magnetic Drive Sensor

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QF1100V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Dimensions:	L1100W420H330(mm)	Load Capacity:	500Kg
Travel Speed:	0-45m/min(Or Customizing))	Driving Mode:	Differential Driving
Guidance:	Magnetic Guidance	Ramp:	3-5 Degree
Guiding Accuracy:	±10mm	Stopping Accuracy:	±10mm
Charging:	Manual Charging,automatic Charging	Life Time:	>10 Years
High Light:	agv autonomous guided vehicle , agv auto guided vehicle

Material Handling AGV Cart One Way Magnetic Drive Sensor Tunnel Tractor for Hospital

1. Product Description:

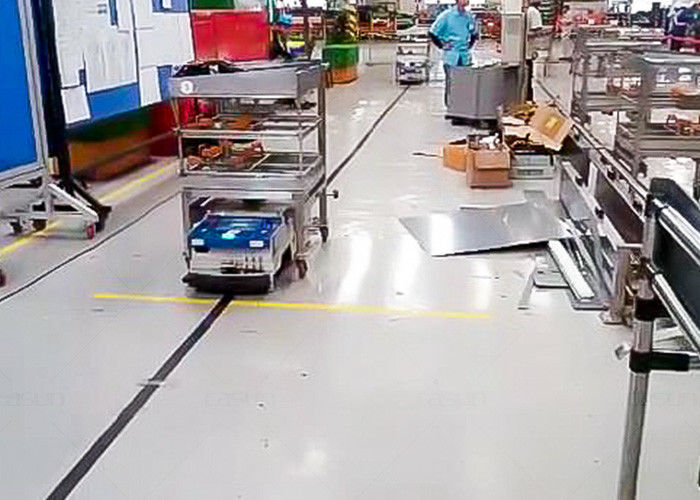

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley.

2. Application:

Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.

One Way Automated Guided Vehicle Hospital , Smart Cart AGV With Magnetic Drive Sensor

3. Specifications:

Product name	Material Handling AGV Cart One Way Magnetic Drive Sensor Tunnel Tractor for Hospital (QF1100V2)
Model	QF1100V2
Dimensions	L1100W420H330(mm)
Load capacity	500Kg
Minimum turning radius	min 500mm
Guidance	Magnetic guidance
Travel Direction	Forward, turn left and right, branch
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
