Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity

Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity

Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity

Product Details:

Place of Origin: China, Shenzhen
Brand Name: CASUN
Certification: CE
Model Number: QF1400V2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden case
Delivery Time: 35 days
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
AGV: Magnetic Tunnel AGV Model: QF1400V2
Guiding Accuracy: ±10mm Travel Speed: 0-45m/min(Or Customizing)
Load Capacity: 500kg - 1000kg Charging Method: Automatic Or Manual
Life Time: > 10 Years Stopping Accuracy: ±10mm
Communication: RF Or Wifi Alarm: Sound And Visual
High Light:

agv autonomous guided vehicle

,

agv auto guided vehicle

Material Trolley AGV Cart Unidirectional Rail Guidance Tunnel Tractor for Electronic Industry



1. Product Description:

The unidirectional tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances, food industry and electronics.



Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity



2. Application:

Widely used for intralogistics solution for loading and uploading materials in Automotive Industry, Electronic Industry, etc.



3. Specifications:

Product name Material Trolley AGV Cart Unidirectional Rail Guidance Tunnel Tractor for Electronic Industry
Model QF1400V2
Dimensions L1400*W420*H290(mm)
Load capacity 500Kg-1000kg
Minimum turning radius min 600mm
Guidance Magnetic guidance
Travel Direction Forward, turn left and right, branch
Travel speed 0-45m/min(Or customizing))
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available RF / Wifi
Driving mode Differential driving
Power DC24V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Charging method Manual charging / automatic charging
Type Tunnel Tractor type
Battery Lead acid battery / lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm

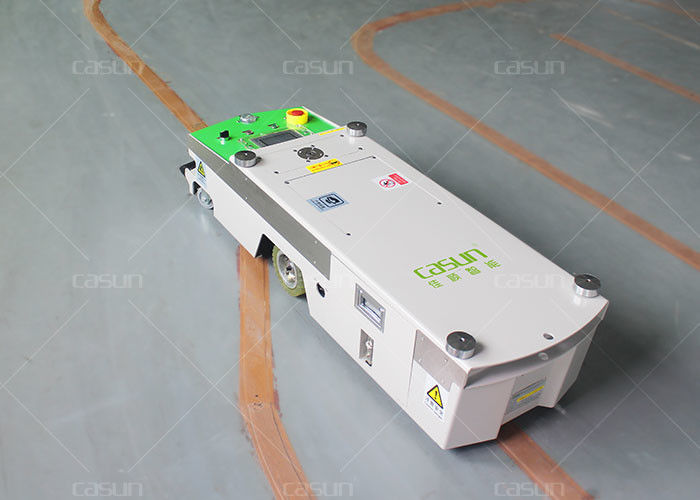

4. Photo:

Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity

Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load CapacityMaterial Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity

Material Trolley Unidirectional Tunnel AGV Smart Cart With High Load CapacityMaterial Trolley Unidirectional Tunnel AGV Smart Cart With High Load Capacity
