Place of Origin: | China, Shenzhen |
Brand Name: | CASUN |
Model Number: | BFJ1500V2 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | USD |
Packaging Details: | Wooden case |
Delivery Time: | 35 days |
Supply Ability: | 200 units / month |
Model: | BFJ1500V2 | Dimensions: | L1500*W800*H765(mm) |
---|---|---|---|
Load Capacity: | 500-1200kg, Customizable | Travel Speed: | 0-45m/min |
Travel Direction: | 360° Driving | Type: | Tunnel Lift |
Drive: | Steering Drive | Industry: | Food Industry And Hospital |
Used For: | Cold Chain -3° | ||
High Light: | industrial mobile robots,lift agv |

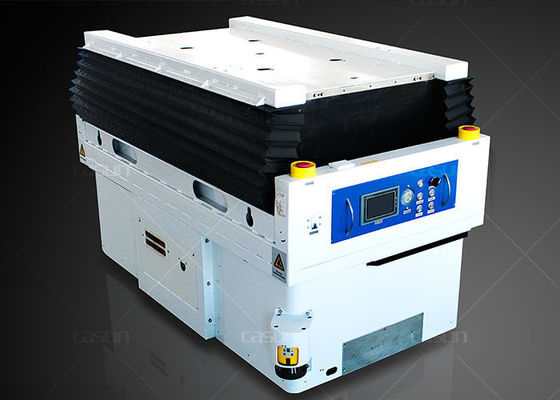

Tunnel Lift AGV with Magnetic Tape Steering Drive Omni Directional for Food Intralogistics Solution
1. Product Description:
Tunnel Lift AGV, which could be used for food indusry with the temperature -3 degree.
The AGV equipped with lifting function ,material can be lifted to the set height and transported to the support plate with limited small space.
In a narrow space environment, the normal AGV can not complete the docking work, but its 360-degree rotation function can meet the requirements of setting different angles running on site, and effectively utilize the on-site space. Mainly suitable for environment with small space and heavy lifting required.
2. Application:

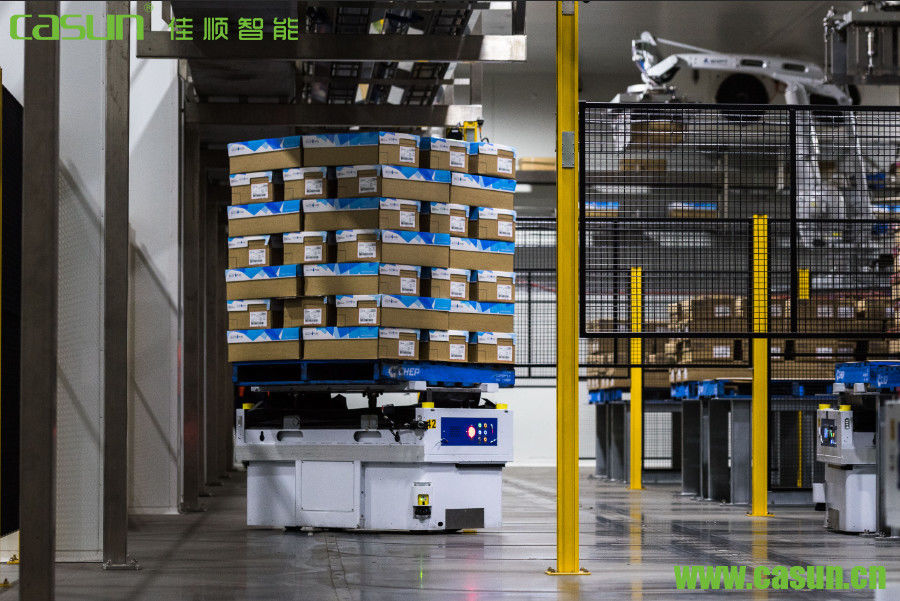

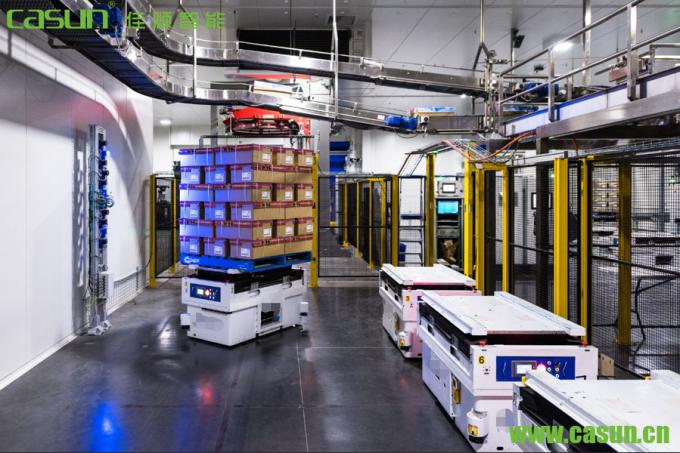

This type of AGV suits for food industry, especially for cold chain warehouse, and medical industry.
3. Specifications:
Product name | Tunnel Lift AGV with Magnetic Tape Steering Drive Omni Directional for Food Intralogistics Solution |
Model | BFJ1500V2 |
Dimensions | L1500*W800*H765(mm) |
Load capacity | 500-1200kg or custom |
Minimum turning radius | 0, Omni-directional driving |
Guidance | Magnetic guidance |
Travel Direction | 360°Omni-directional driving |
Travel speed | 0-45m/min(Or customizing)) |
Guiding accuracy | ±10mm |
Stopping accurac | ±10mm |
Communication available | RF / Wifi |
Driving mode | Differential driving |
Power | DC24V |
Workable | 24 hours by optimizing automatic charging |
Ramp | ≤2° |
Type | Lifting platform |
Charging method | Manual charging / automatic charging |
Battery | Lead acid battery / lithium battery |
Life time | ≥10 years |
Alarm | Sound and visual |
Safety features | Front obstacle sensor+mechanical bumper sensor |
Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: <20mm |
4. Advantages:
