Heavy Duty Laser Guided AGV Forklift AGV solution Industry 4.0
1. Product Description:

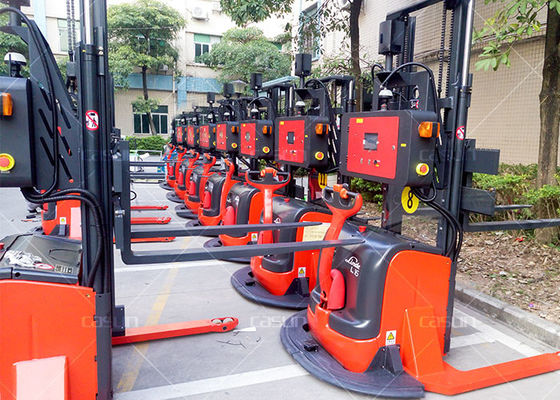

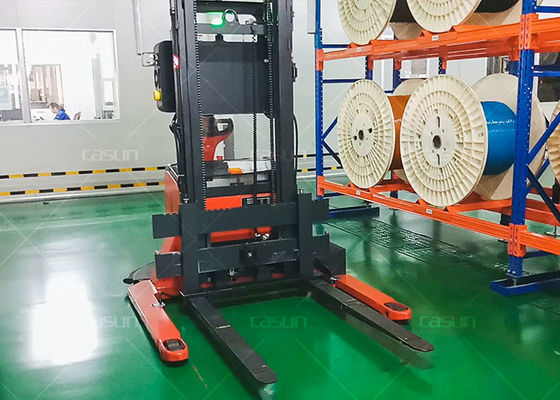

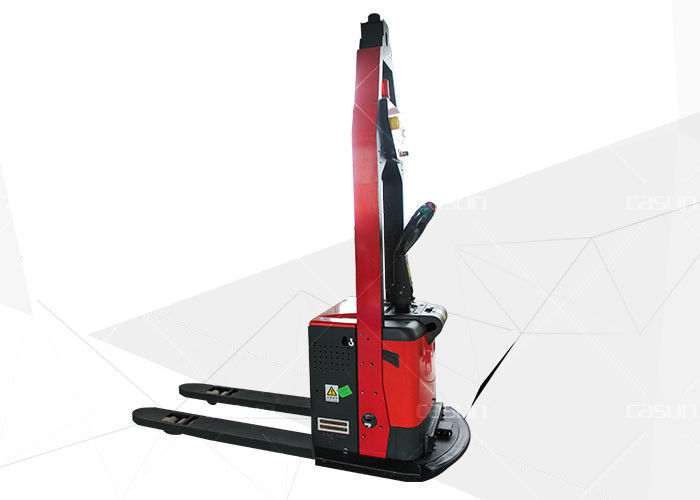

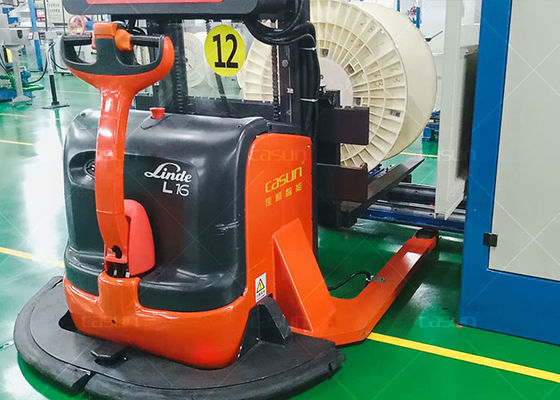

Product Description:Laser guiding forklift AGV (pallet stacker type) series products were developed according to the actual needs of different industries, mainly composed of AGV car body and lifting gear, etc. and are used for lifting & handling work with empty pallet , loading tray and paper rolls,etc.
2. Application:
Widely used for intralogistics solution for loading and uploading materials.
3. Characteristic:
1, Laser guidance, no need of magnetic tape and tap, easy to maintain.
2, Could lift up to 2.9m or design based on customer’ requirement.
3, Maximum capacity is 1.5T or design based on customer’ requirement.
4, Be more flexible, and adaptable for different environments.
5, Precise positioning, error value is in 10mm.
4. Specifications:
| Product name |
Omni Direction Steering Wheel Tunnel Type with Roller Platform AGV |
| Model |
BFQD1800V2 |
| Dimensions |
L1800*W680*H950mm or customizable |
| Load capacity |
200kg |
| Minimum turning radius |
0, Omni-directional driving |
| Guidance |
Magnetic guidance |
| Travel Direction |
360°Omni-directional driving |
| Travel speed |
0-35m/min(Or customizing)) |
| Guiding accuracy |
±10mm |
| Stopping accurac |
±10mm |
| Communication available |
RF / Wifi |
| Driving mode |
Differential driving |
| Power |
DC24V |
| Workable |
24 hours by optimizing automatic charging |
| Ramp |
≤2° |
| Type |
Platform type, omni-directional AGV |
| Charging method |
Manual charging / automatic charging |
| Battery |
Lead acid battery / lithium battery |
| Life time |
≥10 years |
| Alarm |
Sound and visual |
| Safety features |
Front obstacle sensor+mechanical bumper sensor |
| Safety induction range |
Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
|
