Name: Dark Factory Omni Directional Tunnel AGV Cart Steering Wheel Driving Mode
Brand: Casun
SKU: QFD1750V1

Home Products Omni Directional Tunnel AGV

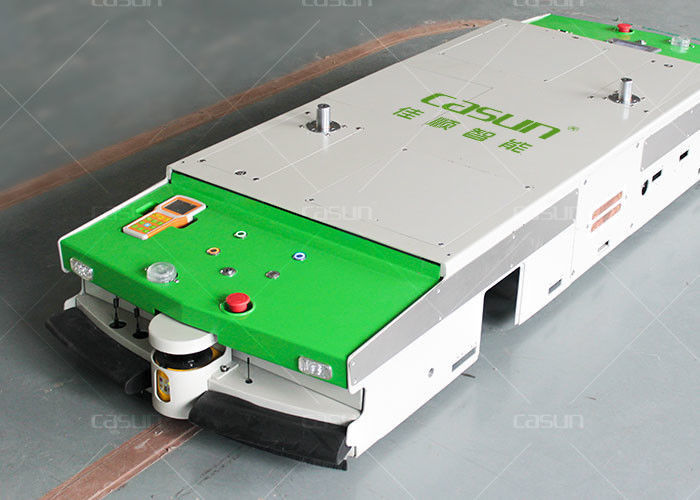

Dark Factory Omni Directional Tunnel AGV Cart Steering Wheel Driving Mode

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	Casun
Model Number:	QFD1750V1

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFD1750V1	Dimensions:	L1750W565H290(mm)
Load Capacity:	1000kg	Guidance:	Magnetic Guidance
Travel Speed:	0-35m/min(Or Customizing))	Direction:	Omni Directional
Ramp:	2 Degree	Charging:	Mannual Charging, Automatic Charging
Alarm:	Sound And Visual	Guiding Accuracy:	±10mm
High Light:	agv material handling , automated guided robots

Driverless Robots AGV Transfer Cart Omnidirectional Track Guidance Trailer Loading for Dark Factory

1. Production description:

The steering wheel omnidirectional tunnel type AGV, omnidirectional running, can be moved laterally, 90 degree steering running, 180 degree in-situ turning running, 360 degree in-situ rotation running. The first horizontal traction truck is suitable for more complex sites and can be run in narrow working conditions.

Dark Factory Omni Directional Tunnel AGV Cart Steering Wheel Driving Mode

2. Application:

Widely used in many industries such as automobiles, home appliances, electronics, electrical appliances, food, etc.

3. Specifications:

Product name	Driverless Robots AGV Transfer Cart Omnidirectional Track Guidance Trailer Loading for Dark Factory (QFD1750V1)
Model	QFD1750V1
Dimensions	L1750W565H290(mm)
Load capacity	1000kg
Minimum turning radius	0°,omnidirectional
Guidance	Magnetic guidance
Travel Direction	Forward and backward, rotate 360° in situ, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Steering wheel driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
