Name: Material Handling AGV Unit Load Carriers Omni Direction Rail Guidance For Cold Sorting Center
Brand: Casun
SKU: QFQ1600V3

Home Products Omni Directional Tunnel AGV

Material Handling AGV Unit Load Carriers Omni Direction Rail Guidance For Cold Sorting Center

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	Casun
Model Number:	QFQ1600V3

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Dimensions:	L1600W420H290(mm)	Model:	QFQ1600V3
Load Capacity:	300kg	Guiding Accuracy:	±10mm
Power:	DC24V	Life Time:	≥10 Years
Minimum Turning Radius:	0°,omni-directional	Type:	Tunnel Type
High Light:	agv material handling , agv warehouse automation

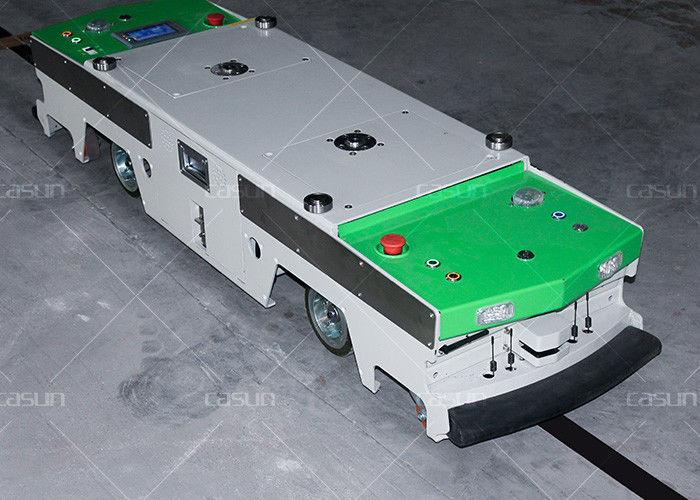

Material Handling Submarine AGV Omni Direction Rail Guidance Lurking Type for Cold Sorting Center

1. Product Description:

The differential omni-directional tunnel type AGV adopts differential drive, flexible body, lateral movement, 90-degree steering running, and 180-degree in-situ running.

2. Application:

Applicable to the narrow working conditions of the site, widely used in automotive, electronics, home appliances, machinery and other industries.

Material Handling AGV Unit Load Carriers Omni Direction Rail Guidance For Cold Sorting Center

3. Specifications:

Product name	Material Handling Submarine AGV Omni Direction Rail Guidance Lurking Type for Cold Sorting Center (QFQ1600V3)
Model	QFQ1600V3
Dimensions	L1600W420H290(mm)
Load capacity	300kg
Minimum turning radius	0°,omni-directional
Guidance	Magnetic guidance
Travel Direction	Move forward and backward, rotate 360° in situ, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
