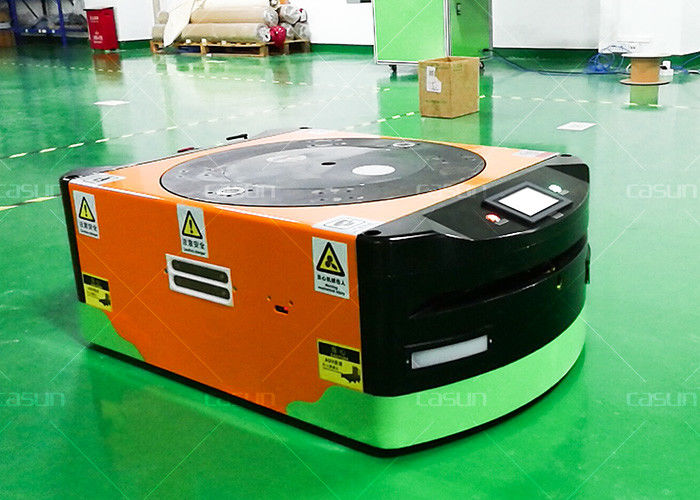

DC48V Auto Charging Natural Navigation AGV Slam Laser Scanner Positioning

DC48V Auto Charging Natural Navigation AGV Slam Laser Scanner Positioning

DC48V Auto Charging Natural Navigation AGV Slam Laser Scanner Positioning

Product Details:

Place of Origin: China, Shenzhen
Brand Name: CASUN
Certification: CE
Model Number: CA-ZR1080V1

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden case
Delivery Time: 35 days
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Model: CA-ZR1080V1 Navigation: SLAM
Power: DC48V Lift Height: 50mm
Speed: 0-72m/min Load Capacity: 300kg (customizable)
High Light:

agv slam

,

automated guided vehicle systems

Agv Robot Slam AGV Auto Charging Automatic Handling Equipment





1. Product Description:



Product Description: Natural Guide AGV with differential speed driving, encoder-aid calculation and laser scanner positioning, benefits the user with more accurate positioning, easier installation, and minimum change to the field. With optional autonomous obstacle avoidance function, the flexibility of the AGV will be much more improved.





2. Application:



Widely used in home appliance and electronics industry for loading and uploading materials.





3. Characteristic:

  • No landmarks, no ground construction.
  • Deep independent thinking
  • Independent teaching, memory and travel



4. Specifications:



Product name QR Code Inertial Navigation AGV
Model BFJ850-320V2
Dimensions L850*W600*H320(mm)
Load capacity 500kg(Or customizing)
Minimum turning radius 0,360°driving
Guidance Inertial navigation and QR code correction
Travel Direction forward and backward, rotate 360° in place, branch
Travel speed 0-1.2m/s
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available Wifi
Driving mode Two-wheel differential drive
Power DC48V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Type roll platform type
Charging method automatic charging
Battery Lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm





DC48V Auto Charging Natural Navigation AGV Slam Laser Scanner Positioning

DC48V Auto Charging Natural Navigation AGV Slam Laser Scanner Positioning
