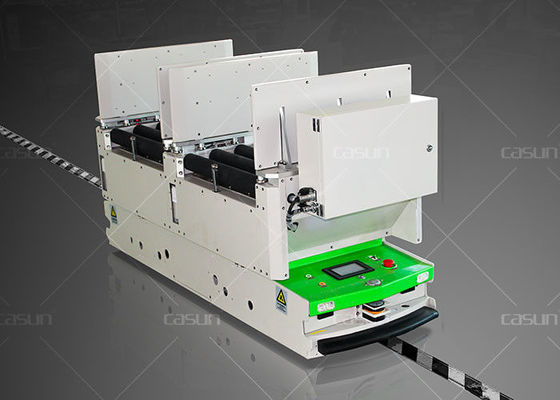

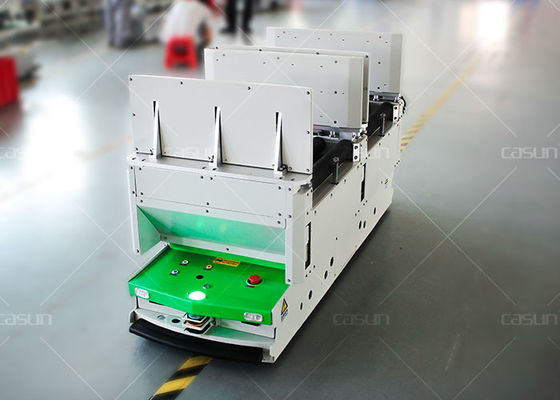

All Directional Roller Docking AGV , Automated Guided Vehicle Robot With Safety Guarantee

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	BFQD1800V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	BFQD1800V2	Dimensions:	L1800W680H950mm Or Customizable
Load Capacity:	200kg	Guidance:	Magnetic Guidance
Travel Speed:	0-35m/min(Or Customizing)	Guiding Accuracy:	±10mm
Minimum Turning Radius:	0, Omni-directional Driving	Stopping Accuracy:	±10mm
Driving Mode:	Steering Drive	Power:	DC24V
Ramp:	≤2°	Type:	Platform Type, Omni-directional AGV
Charging Method:	Manual Charging / Automatic Charging	Battery:	Lead Acid Battery / Lithium Battery
Life Time:	≥10 Years	Alarm:	Sound And Visual
High Light:	automatic guided carts , automated guided vehicle robot

Roller Docking AGV Transfer Vehicle Track Guidance All Directional Intralogistics for Vegetable Movement

1.Product Description:

Roller platform type 360 degree turning AGV (steering wheel drive) adopts a hybrid guidance technology (hardware with magnetic guidance+software with laser guidance ) which developed by our own company . Can spin around 360 degrees and walk with quad motion , can be used flexibly in narrow channels. The platform roller on AGV delivers materials and docks with rollers beside the production line seamlessly. It’s a high-end intelligent AGV product mainly used at the site with the complex scheduling system.

All Directional Roller Docking AGV , Automated Guided Vehicle Robot With Safety Guarantee

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3.Specifications:

Product name	Roller Docking AGV Transfer Vehicle Track Guidance All Directional Intralogistics for Vegetable Movement
Model	BFQD1800V2
Dimensions	L1800W680H950mm or customizable
Load capacity	200kg
Minimum turning radius	0, Omni-directional driving
Guidance	Magnetic guidance
Travel Direction	360°Omni-directional driving
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Platform type, omni-directional AGV
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
