Name: Customizing Speed Omni Directional Tunnel AGV Automated Guided Vehicle Hospital
Brand: Casun
SKU: QFQ1600V3

Home Products Omni Directional Tunnel AGV

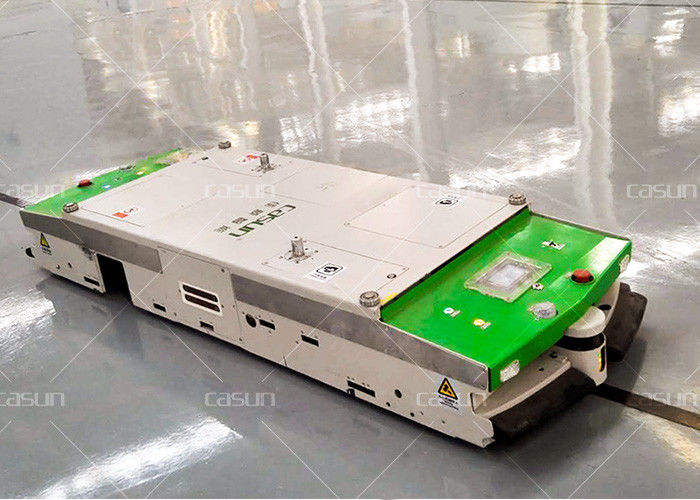

Customizing Speed Omni Directional Tunnel AGV Automated Guided Vehicle Hospital

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	Casun
Model Number:	QFQ1600V3

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Dimensions:	L1600W420H290(mm)	Model:	QFQ1600V3
Guiding Accuracy:	±10mm	Type:	Tunnel Type
Battery:	Lead-Acid Battery, Lithium Battery	Charging:	Mannual Charging,automatic Charging
Communication:	RF/wifi	Detaction Distance:	3M Adjustable
Load Capacity:	300kg	Life Time:	≥10 Years
Alarm:	Sound And Visual	Stopping Accuracy:	±10mm
High Light:	agv material handling , automated guided robots

Laser Obstacle Sensor Backpack AGV Universal Wheel Magnetic Drive Sensor Tunnel Type for Hospital

1. Product Description:

The differential omni-directional tunnel type AGV adopts differential drive, flexible body, lateral movement, 90-degree steering running, and 180-degree in-situ running.

2. Application:

Applicable to the narrow working conditions of the site, widely used in automotive, electronics, home appliances, machinery and other industries.

Customizing Speed Omni Directional Tunnel AGV Automated Guided Vehicle Hospital

3. Specifications:

Product name	Laser Obstacle Sensor Backpack AGV Universal Wheel Magnetic Drive Sensor Tunnel Type for Hospital (QFQ1600V3)
Model	QFQ1600V3
Dimensions	L1600W420H290(mm)
Load capacity	300kg
Minimum turning radius	0°,omni-directional
Guidance	Magnetic guidance
Travel Direction	Move forward and backward, rotate 360° in situ, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
