Place of Origin: | China, Shenzhen |
Brand Name: | CASUN |
Certification: | CE |
Model Number: | CJPT20V2 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | USD |
Packaging Details: | Wooden case |
Delivery Time: | 35 days |
Supply Ability: | 200 units / month |
AGV: | Automated Guided Vehicle | Guidance: | Laser Guidance |
---|---|---|---|
Communication: | Wifi | Ramp: | 0-2 Degree |
Power: | DC24V | Type: | Forklift Handling Type |
Load Capacity: | 1500kg Or Customizable | ||
High Light: | agv material handling,agv warehouse automation |
Forklift Laser Guided AGV (Convey Type) 1500kg Load Automatic Handling AGV
1.Product Description:
Automatic handling forklift has capability of higher accurate positioning; it runs without any other positioning facilities on ground and is applicable for variable running route and various field environments. Besides, with the advanced guiding method (laser), Casun forklift AGV and system is more user-friendly for route-changing on a software base.
2. Application:
Widely used for intralogistics solution for loading and uploading materials.
3. Specifications:
Product name | Laser Guiding Forklift AGV (Convey Type) |
Model | CJPT20V2 |
Dimensions | L2200*W800*H2200(mm)(Or customizing)) |
Load capacity | 1000kg(Or customizing) |
Minimum turning radius | min 1500mm |
Guidance | laser guidance |
Travel Direction | Forward, backward, turn left and right & branch |
Travel speed | 0-75m/min(Or customizing)) |
Guiding accuracy | ±10mm |
Stopping accurac | ±10mm |
Communication available | Wifi |
Driving mode | Steering wheel driving |
Power | DC24V |
Workable | 24 hours by optimizing automatic charging |
Ramp | ≤2° |
Type | Forklift type |
Charging method | Manual charging / automatic charging |
Battery | Lead acid battery / lithium battery |
Life time | ≥10 years |
Alarm | Sound and visual |
Safety features | Front obstacle sensor+mechanical bumper sensor |
Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: <20mm |

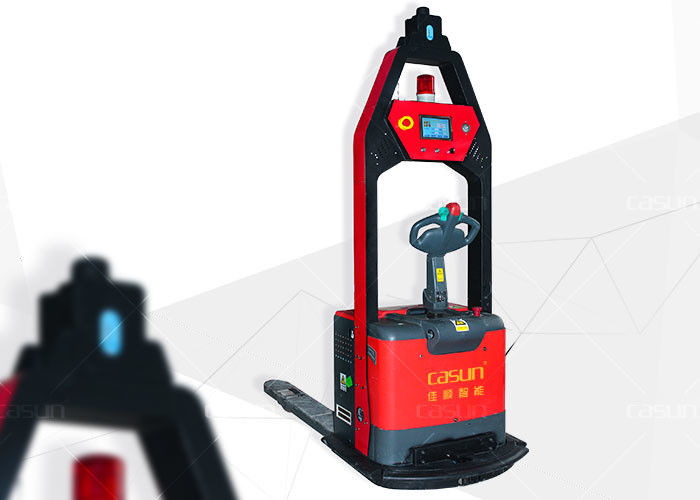

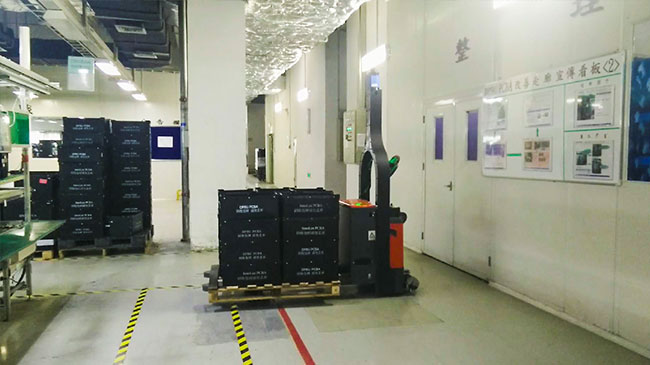

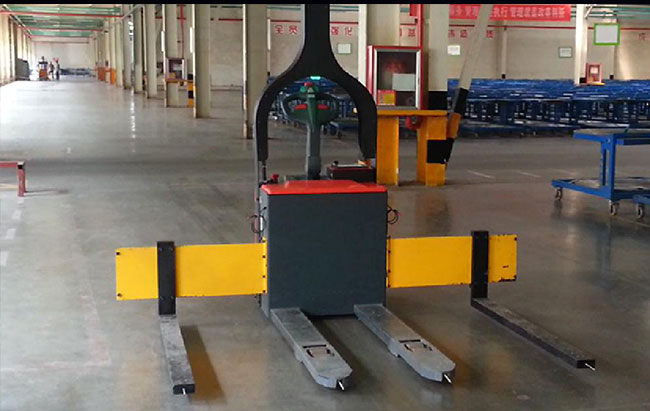

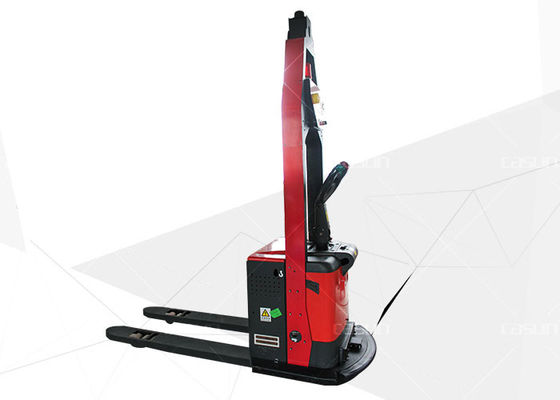

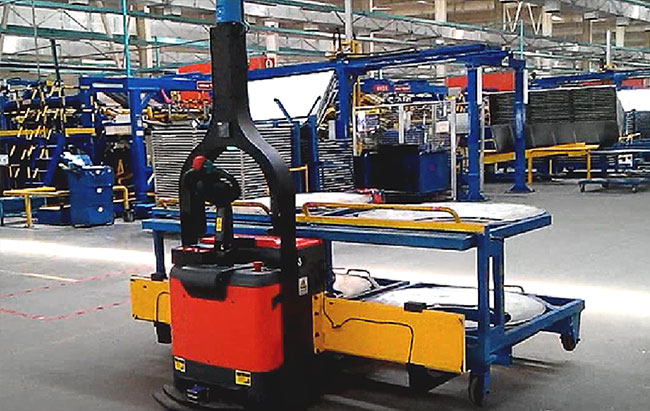

4. Photo:
