Place of Origin: | China, Shenzhen |
Brand Name: | Casun |
Model Number: | QFQ1600V3 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | USD |
Packaging Details: | Wooden case |
Delivery Time: | 35 days |
Supply Ability: | 200 units / month |
Dimensions: | L1600*W420*H290(mm) | Load Capacity: | 300kg |
---|---|---|---|
Minimum Turning Radius: | 0°,omni-directional | Guiding Accuracy: | ±10mm |
Power: | DC24V | Life Time: | ≥10 Years |
High Light: | agv material handling,automated guided robots |

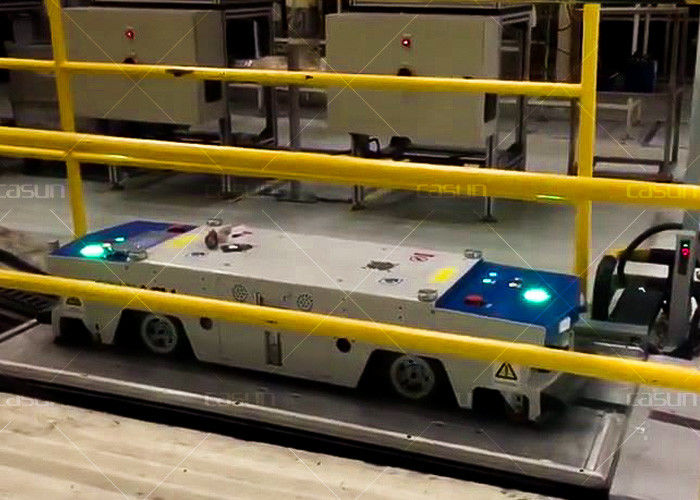

Differential Speed Magnetic Tape AGV Omni Direction Material Handling
1. Product Description:
The differential omni-directional tunnel type AGV adopts differential drive, flexible body, lateral movement, 90-degree steering running, and 180-degree in-situ running.
2. Application:
Applicable to the narrow working conditions of the site, widely used in automotive, electronics, home appliances, machinery and other industries.
3. Specifications:
Product name | Differential Speed Omni Direction Tunnel Type AGV (QFQ1600V3) |
Model | QFQ1600V3 |
Dimensions | L1600*W420*H290(mm) |
Load capacity | 300kg |
Minimum turning radius | 0°,omni-directional |
Guidance | Magnetic guidance |
Travel Direction | Move forward and backward, rotate 360° in situ, branch |
Travel speed | 0-35m/min(Or customizing)) |
Guiding accuracy | ±10mm |
Stopping accurac | ±10mm |
Communication available | RF / Wifi |
Driving mode | Differential driving |
Power | DC24V |
Workable | 24 hours by optimizing automatic charging |
Ramp | ≤2° |
Type | Tunnel type |
Charging method | Manual charging / automatic charging |
Battery | Lead acid battery / lithium battery |
Life time | ≥10 years |
Alarm | Sound and visual |

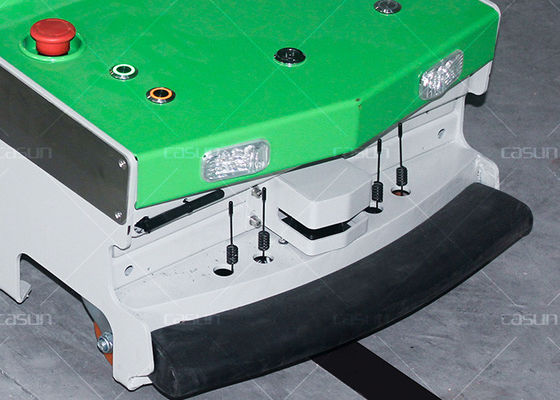

Safety features | Front obstacle sensor+mechanical bumper sensor |
Safety induction range | Detecting range ≤3m, adjustable; Emergency braking distance: <20mm |
4. Advantages:
