Product Details:

Place of Origin: China, Shenzhen
Brand Name: CASUN
Certification: CE
Model Number: BFJ1500V2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden case
Delivery Time: 35 days
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Loading Capacity: 500-1500kg Navigation: Magnetic
Dimensions: L1500*W800*H765(mm) Battery: Lithium
Direction: All Direction Accuracy: ±10mm
High Light:

industrial mobile robots

,

lift agv

Driverless Heavy Duty AGV Heavy Payload Industrial Mobile Robot





1. Product Description:



Omni-directional lifting Platform AGV: The material can be lifted to the set height and transported to the support plate, and the space required for running is small. In a narrow space environment, the normal AGV can not complete the docking work, and its 360-degree rotation function can meet the requirements of setting different angles running on site, and effectively utilize the on-site space. Mainly suitable for environment with small space and heavy lifting required





2. Application:

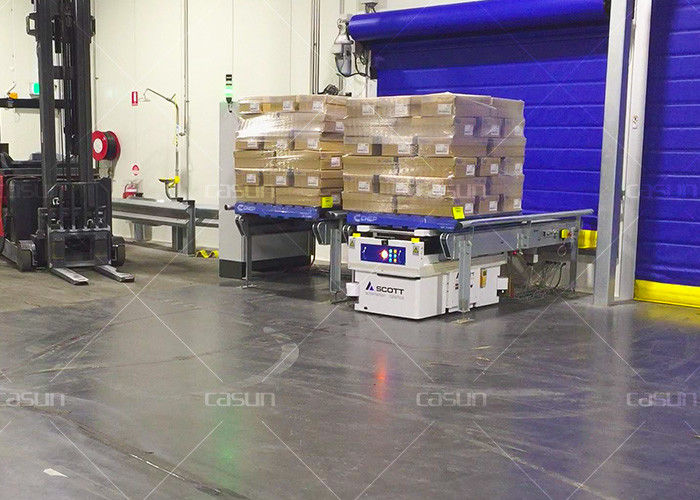

This type of AGV is a customized model for one project of cold supply chain warehouse. It is designed special for food industry.





3. Specifications:



Product name Omni Direction Tunnel Type with Lifting Platform AGV
Model BFJ1500V2
Dimensions L1500*W800*H765(mm)
Load capacity 1200kg
Minimum turning radius 0, Omni-directional driving
Guidance Magnetic guidance
Travel Direction 360°Omni-directional driving
Travel speed 0-45m/min(Or customizing))
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available RF / Wifi
Driving mode Differential driving
Power DC24V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Type Lifting platform
Charging method Manual charging / automatic charging
Battery Lead acid battery / lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm





4. Advantages:

  • Omni directional lifting
  • Automatic scanning barcode when AGV rotate 360 degree
  • Able to work in a narrow space
