Home ProductsQR Code Inertial Navigation AGV

Free Mapping AGV Warehouse Automation , Automated Guided Vehicle Robot With High Accuracy

Free Mapping AGV Warehouse Automation , Automated Guided Vehicle Robot With High Accuracy

Free Mapping AGV Warehouse Automation , Automated Guided Vehicle Robot With High Accuracy

Product Details:

Place of Origin: China, Shenzhen
Brand Name: CASUN
Model Number: BFJ850-320V2

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: Wooden case
Delivery Time: 35 days
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Charging Method: Auto-Charging Payload: 500KG Or Customized
Navigation: QR Code Accuracy: ±10mm
Lift Height: 50mm Speed: 0-1.2m/s
High Light:

agv logistics

,

agv robot

Agv Robot AGV Warehouse Automation Handling Equipment CE ISO9001



1. Product Description:

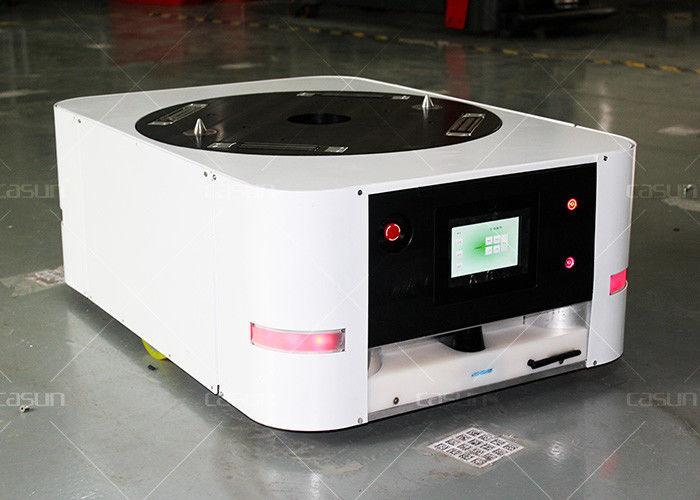

This Inertial guide AGV is also well known as Order Picking AGV widely used in warehouses, especially for online retailer industry. With the differential servo driving motors and QR codes on the ground as landmarks, this type of AGV can reach higher stopping accuracy and travel speed than other types. Also, it requests less spaces due to the free spinning function.



2. Specifications:



Product name QR Code Inertial Navigation AGV
Model BFJ850-320V2
Dimensions L850*W600*H320(mm)
Load capacity 500kg(Or customizing)
Minimum turning radius 0,360°driving
Guidance Inertial navigation and QR code correction
Travel Direction forward and backward, rotate 360° in place, branch
Travel speed 0-1.2m/s
Guiding accuracy ±10mm
Stopping accurac ±10mm
Communication available Wifi
Driving mode Two-wheel differential drive
Power DC48V
Workable 24 hours by optimizing automatic charging
Ramp ≤2°
Type roll platform type
Charging method automatic charging
Battery Lithium battery
Life time ≥10 years
Alarm Sound and visual
Safety features Front obstacle sensor+mechanical bumper sensor
Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm




3. Characteristic:



  • high accuracy and speed, free mapping and routing
  • non-magnet guide line on the ground
  • less space requested
  • compatible with WMS for real time material position and situation.

Free Mapping AGV Warehouse Automation , Automated Guided Vehicle Robot With High Accuracy





Free Mapping AGV Warehouse Automation , Automated Guided Vehicle Robot With High Accuracy

Free Mapping AGV Warehouse Automation , Automated Guided Vehicle Robot With High Accuracy
