Name: Effective Bi Directional Tunnel AGV Automatic Guided Vehicle Tunnel Type
Brand: CASUN
SKU: QFS1550V2

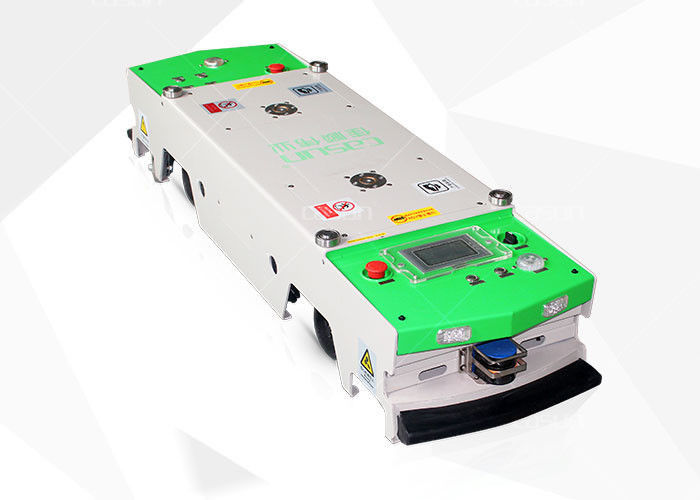

Effective Bi Directional Tunnel AGV Automatic Guided Vehicle Tunnel Type

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS1550V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

AGV:	Automated Guided Vehicle	Model:	QFS1550V2
Guidance:	Magnetic Guidance	Power:	DC24V
Load Capacity:	500-1500kg	Travel Speed:	0-35m/min
Lifetime:	>10 Years	Ramp:	≤2°
Charging Method:	Manual Charging / Automatic Charging	Communication:	RF Or Wifi
Guiding Accuracy:	±10mm	Stopping Accuracy:	±10mm
Minimum Turning Radius:	Min 900mm	Detection Range:	≤3m
High Light:	automatic guided vehicle , smart cart agv

Differential Speed Automated Guided Vehicle Bidirectional Rail Guidance Tunnel Tractor for Shelf Movement

1. Product Description:

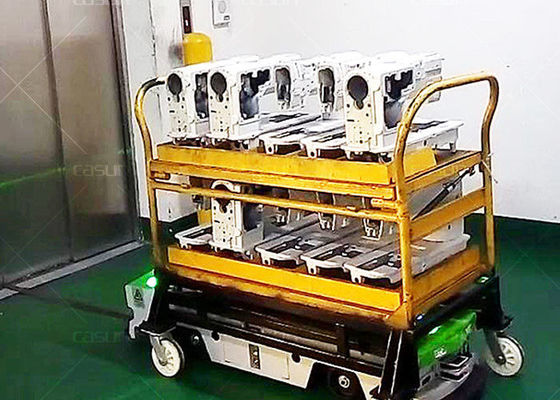

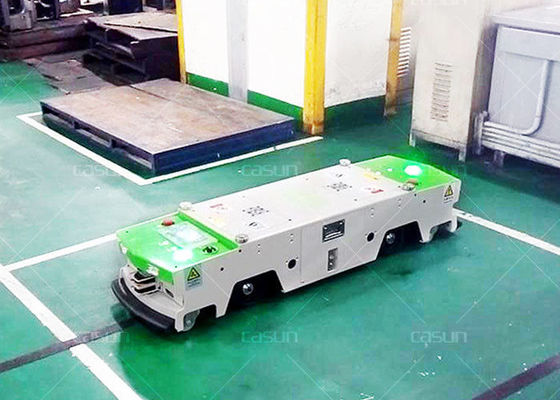

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.

Effective Bi Directional Tunnel AGV Automatic Guided Vehicle Tunnel Type

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Differential Speed Automated Guided Vehicle Bidirectional Rail Guidance Tunnel Tractor for Shelf Movement (QFS1550V2)
Model	QFS1550V2
Dimensions	L1550W420H290(mm)
Load capacity	500Kg/800kg
Minimum turning radius	min 800mm
Guidance	Magnetic guidance
Travel Direction	Forward, backword, turn left and right, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
