Name: Differential Driving Mode Bi Directional Tunnel AGV Robot For Rack Handling
Brand: CASUN
SKU: QFS1550V2

Home Products Bi Directional Tunnel AGV

Differential Driving Mode Bi Directional Tunnel AGV Robot For Rack Handling

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS1550V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

AGV:	Automated Guided Vehicle	Model:	QFS1550V2
Guidance:	Magnetic Guidance	Power:	DC24V
Load Capacity:	500-1500kg	Travel Speed:	0-35m/min
Lifetime:	>10 Years	Ramp:	≤2°
Charging Method:	Manual Charging / Automatic Charging	Battery:	Lead-acid Battery, Lithium Battery
Communication:	RF Or Wifi	Guiding Accuracy:	±10mm
Stopping Accuracy:	±10mm	Travel Direction:	Forward, Backward, Left/right Turning & U Turn
High Light:	automated guided carts , smart cart agv

Intralogistics Automatic Guiding Vehicle Two Way Track Guidance Lurking Type for Rack Handling

1. Product Description:

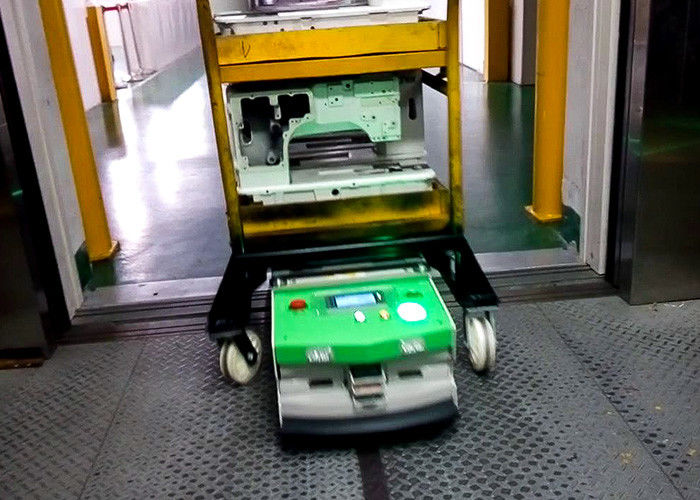

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.

Differential Driving Mode Bi Directional Tunnel AGV Robot For Rack Handling

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Intralogistics Automatic Guiding Vehicle Two Way Track Guidance Lurking Type for Rack Handling (QFS1550V2)
Model	QFS1550V2
Dimensions	L1550W420H290(mm)
Load capacity	500Kg/800kg
Minimum turning radius	min 800mm
Guidance	Magnetic guidance
Travel Direction	Forward, backword, turn left and right, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
