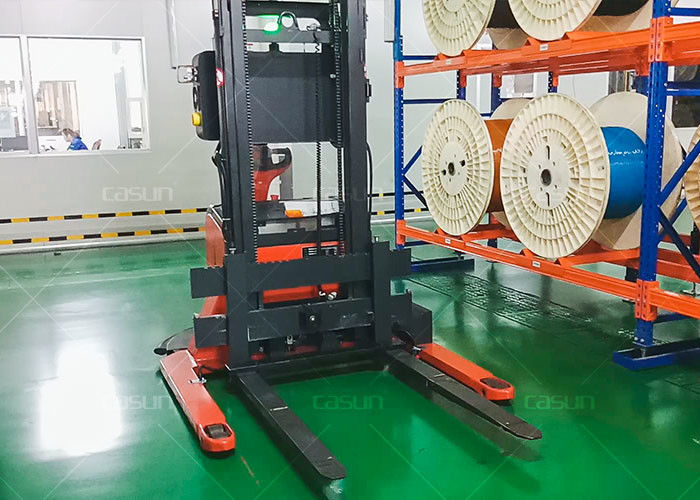

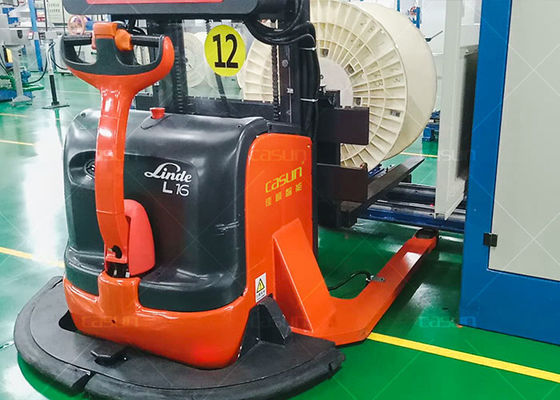

Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting

Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting

    • Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting
    • Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting
  • Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting

    Product Details:

    Place of Origin: China
    Brand Name: CASUN
    Certification: CE ISO9001
    Model Number: CJPSB15V1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD
    Packaging Details: Wooden case
    Delivery Time: 35 working days
    Supply Ability: 200 units per month
    Contact Now
    Detailed Product Description
    Navigation: Laser Dimension: L1975*W796*H3943mm
    Speed: 45m/min Load Capacity: 1500kg
    Battery: Lithium Battery Alarm: Sound And Visual
    High Light:

    agv forklift

    ,

    agv pallet truck

    Auto charging Laser Guided AGV Industrial Mobile robot Self-driving forklift





    1. Product Description:



    Product Description:Laser guiding forklift AGV (pallet stacker type) series products were developed according to the actual needs of different industries, mainly composed of AGV car body and lifting gear, etc. and are used for lifting & handling work with empty pallet , loading tray and paper rolls,etc.





    2. Application:



    Widely used for intralogistics solution for loading and uploading materials.





    3. Characteristic:



    1, Laser guidance, no need of magnetic tape and tap, easy to maintain.

    2, Could lift up to 2.9m or design based on customer’ requirement.

    3, Maximum capacity is 1.5T or design based on customer’ requirement.

    4, Be more flexible, and adaptable for different environments.

    5, Precise positioning, error value is in 10mm.





    4. Specifications:



    Product name Omni Direction Steering Wheel Tunnel Type with Roller Platform AGV
    Model BFQD1800V2
    Dimensions L1800*W680*H950mm or customizable
    Load capacity 200kg
    Minimum turning radius 0, Omni-directional driving
    Guidance Magnetic guidance
    Travel Direction 360°Omni-directional driving
    Travel speed 0-35m/min(Or customizing))
    Guiding accuracy ±10mm
    Stopping accurac ±10mm
    Communication available RF / Wifi
    Driving mode Differential driving
    Power DC24V
    Workable 24 hours by optimizing automatic charging
    Ramp ≤2°
    Type Platform type, omni-directional AGV
    Charging method Manual charging / automatic charging
    Battery Lead acid battery / lithium battery
    Life time ≥10 years
    Alarm Sound and visual
    Safety features Front obstacle sensor+mechanical bumper sensor
    Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm




    Cases

    Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting

    Auto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m LiftingAuto Charging Laser Guided Forklifts With Laser Obstacle Sensor 2.9m Lifting
