Name: Energy Saving Two Way Unit Load AGV Lurking Type With Safe Laser Obstacle Sensor
Brand: CASUN
SKU: QFS1900V2

Home Products Bi Directional Tunnel AGV

Energy Saving Two Way Unit Load AGV Lurking Type With Safe Laser Obstacle Sensor

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS1900V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFS1900V2	Dimensions:	L1900xW420xH290(mm)
Load Capacity:	500Kg-1500kg	Ramp:	≤2°
Charging Method:	Manual Charging / Automatic Charging	Battery:	Lead-acid Battery, Lithium Battery
Guidance:	Magnetic Guidance	Power:	DC24V
Guiding Accuracy:	±10mm	Minimum Turning Radius:	Min 900mm
Travel Direction:	Forward, Backward, Left/right Turning & U Turn	Stopping Accuracy:	±10mm
Charging Method:	Manual Charging, Automatic Charging	Life Time:	≥10 Years
High Light:	automated guided carts , smart cart agv

Laser Obstacle Sensor Submarine AGV Two Way Magnetic Drive Sensor Lurking Type for Cold Sorting Center

1. Product Description:

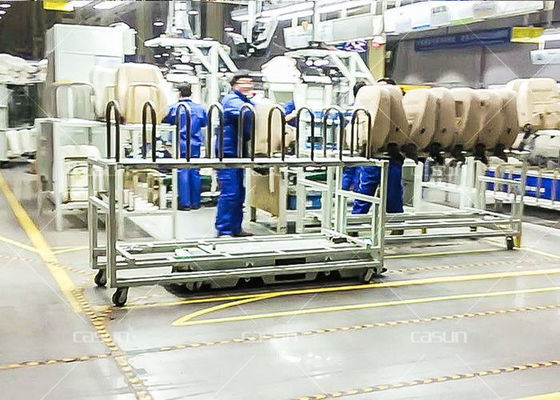

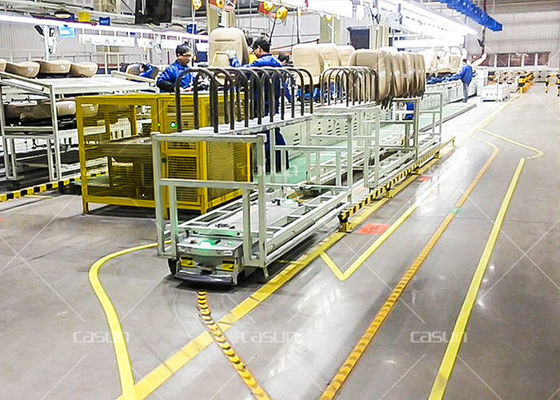

The two-way tunnel type AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the trolley, can reciprocate in a single channel. Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics, etc.

Energy Saving Two Way Unit Load AGV Lurking Type With Safe Laser Obstacle Sensor

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Laser Obstacle Sensor Submarine AGV Two Way Magnetic Drive Sensor Lurking Type for Cold Sorting Center (QFS1900V2)
Model	QFS1900V2
Dimensions	L1900xW420xH290(mm)
Load capacity	500Kg/1200kg
Minimum turning radius	min 1000mm
Guidance	Magnetic guidance
Travel Direction	Forward, backword turn left and right, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
