Name: DC24V Automated Guided Cart , AGV Guided Vehicle Two Way Magnetic Guidance
Brand: CASUN
SKU: QFS1900V2

Home Products Bi Directional Tunnel AGV

DC24V Automated Guided Cart , AGV Guided Vehicle Two Way Magnetic Guidance

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS1900V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFS1900V2	Dimensions:	L1900xW420xH290(mm)
Load Capacity:	500Kg-1500kg	Ramp:	≤2°
Charging Method:	Manual Charging / Automatic Charging	Battery:	Lead-acid Battery, Lithium Battery
Guidance:	Magnetic Guidance	Communication:	RF Or Wifi
Power:	DC24V	Guiding Accuracy:	±10mm
Minimum Turning Radius:	Min 900mm	Travel Direction:	Forward, Backward, Left/right Turning & U Turn
Stopping Accuracy:	±10mm	Life Time:	≥10 Years
High Light:	automatic guided vehicle , smart cart agv

Differential Speed Automated Guided Cart Bidirectional Magnetic Guidance Tunnel Tractor for Textile Industry

1. Product Description:

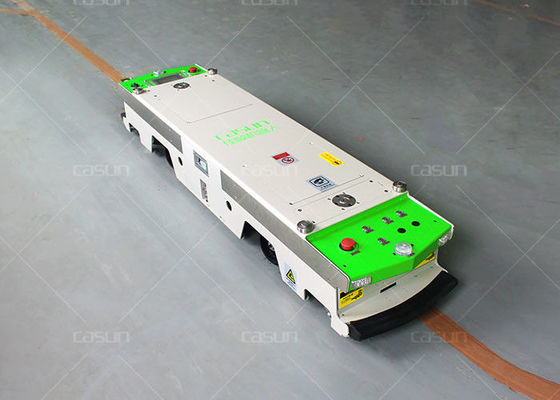

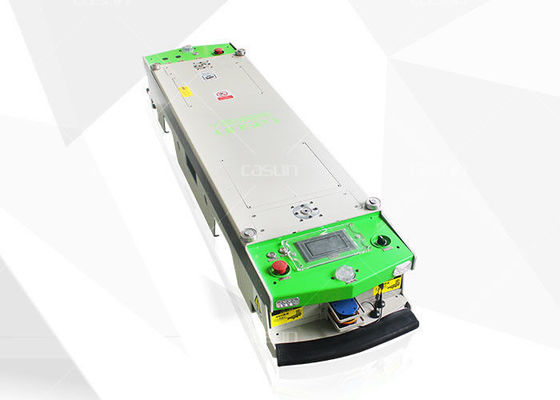

The two-way tunnel type AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the trolley, can reciprocate in a single channel. Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics, etc.

DC24V Automated Guided Cart , AGV Guided Vehicle Two Way Magnetic Guidance

2. Application:

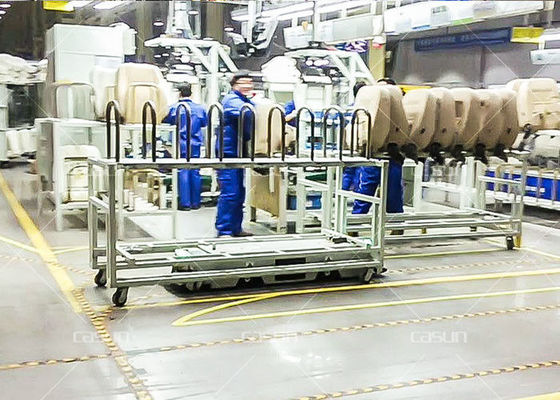

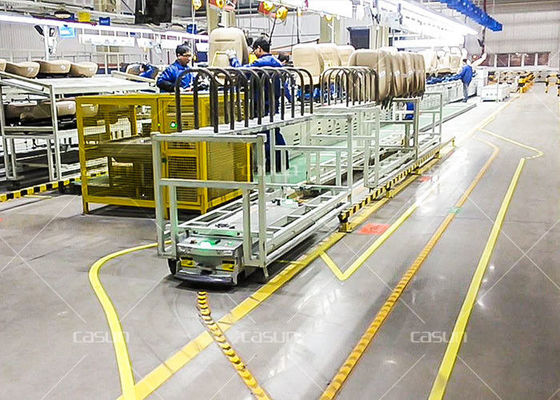

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Differential Speed Automated Guided Cart Bidirectional Magnetic GuidanceTunnel Tractor for Textile Industry (QFS1900V2)
Model	QFS1900V2
Dimensions	L1900xW420xH290(mm)
Load capacity	500Kg/1200kg
Minimum turning radius	min 1000mm
Guidance	Magnetic guidance
Travel Direction	Forward, backword turn left and right, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
