Name: Intralogistics Bi Directional Tunnel AGV Automated Guided Vehicle Robot With High Load Capacity
Brand: CASUN
SKU: QFS1900V2

Home Products Bi Directional Tunnel AGV

Intralogistics Bi Directional Tunnel AGV Automated Guided Vehicle Robot With High Load Capacity

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFS1900V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFS1900V2	Dimensions:	L1900xW420xH290(mm)
Load Capacity:	500Kg-1500kg	Ramp:	≤2°
Charging Method:	Manual Charging / Automatic Charging	Battery:	Lead-acid Battery, Lithium Battery
Guidance:	Magnetic Guidance	Communication:	RF Or Wifi
Guiding Accuracy:	±10mm	Travel Direction:	Forward, Backward, Left/right Turning & U Turn
Stopping Accuracy:	±10mm	Charging Method:	Manual Charging, Automatic Charging
Detection Range:	≤3m	Life Time:	≥10 Years
High Light:	automated guided carts , smart cart agv

Intralogistics AGV Transfer Vehicle Two Way Magnetic Tape Lurking Type for Fabric Industry

1. Product Description:

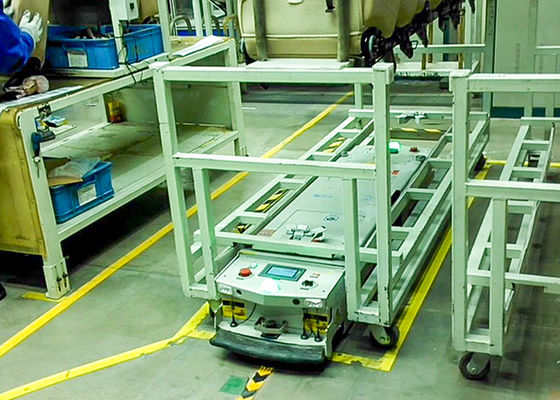

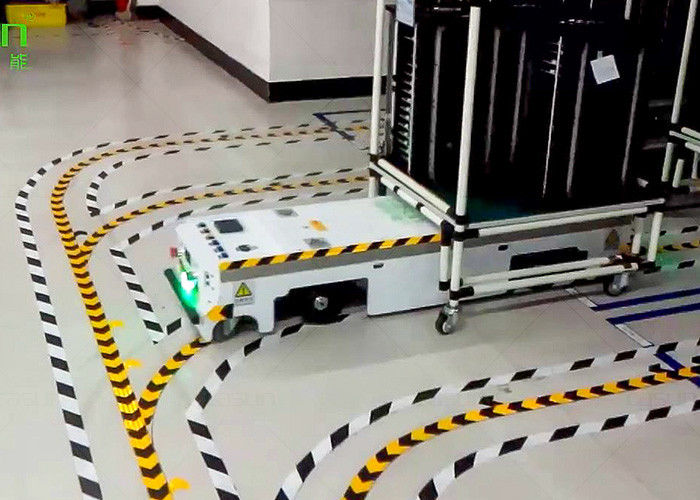

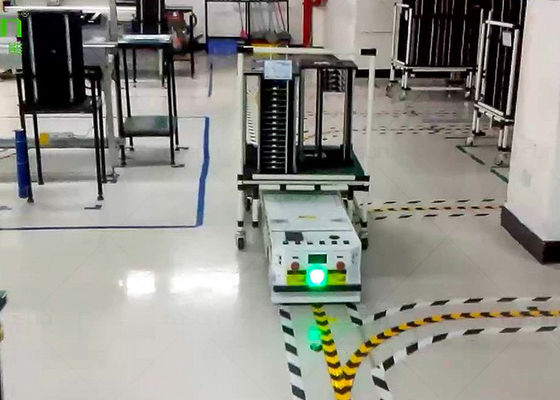

The two-way tunnel type AGV is used in a limited space, single-channel driving, AGV lurking under the tooling truck, using the tow bar to automatically lift, hook or drop the trolley, can reciprocate in a single channel. Widely used in many industries such as automobiles, home appliances, electrical appliances, electronics, etc.

Intralogistics Bi Directional Tunnel AGV Automated Guided Vehicle Robot With High Load Capacity

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Intralogistics AGV Transfer Vehicle Two Way Magnetic Tape Lurking Type for Fabric Industry (QFS1900V2)
Model	QFS1900V2
Dimensions	L1900xW420xH290(mm)
Load capacity	500Kg/1200kg
Minimum turning radius	min 1000mm
Guidance	Magnetic guidance
Travel Direction	Forward, backword turn left and right, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
