Name: 24h Long Working Time Unidirectional Tunnel AGV Auto Guided Vehicle With Laser Obstacle Sensor
Brand: CASUN
SKU: QF1100V2

Home Products Unidirectional Tunnel AGV

24h Long Working Time Unidirectional Tunnel AGV Auto Guided Vehicle With Laser Obstacle Sensor

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QF1100V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Dimensions:	L1100W420H330(mm)	Load Capacity:	500Kg
Travel Speed:	0-45m/min(Or Customizing))	Type:	Tunnel Type
Communication Available:	RF / Wifi	Driving Mode:	Differential Driving
Guidance:	Magnetic Guidance	Ramp:	3-5 Degree
High Light:	agv autonomous guided vehicle , agv auto guided vehicle

Laser Obstacle Sensor AGV Transfer Cart Unidirectional Rail Guidance Tunnel Tractor for Cold Sorting Center

1. Product Description:

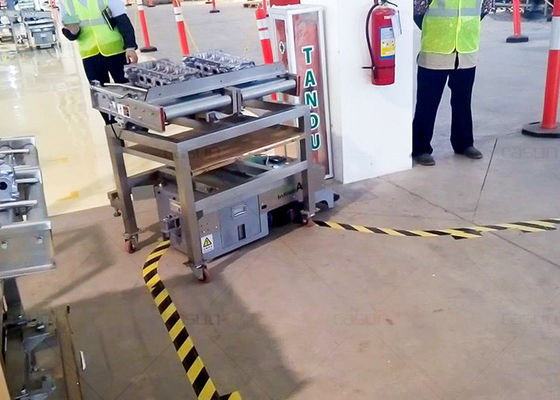

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley.

2. Application:

Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.

24h Long Working Time Unidirectional Tunnel AGV Auto Guided Vehicle With Laser Obstacle Sensor

3. Specifications:

Product name	Laser Obstacle Sensor AGV Transfer Cart Unidirectional Rail Guidance Tunnel Tractor for Cold Sorting Center (QF1100V2)
Model	QF1100V2
Dimensions	L1100W420H330(mm)
Load capacity	500Kg
Minimum turning radius	min 500mm
Guidance	Magnetic guidance
Travel Direction	Forward, turn left and right, branch
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
