Heavy Duty Automated Guided Cart Single Way Track Guidance Tunnel Type for Dark Factory

Product Details:

Place of Origin:	China, Shenzhen
Brand Name:	CASUN
Model Number:	QFL1400V2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	USD
Packaging Details:	Wooden case
Delivery Time:	35 days
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Model:	QFL1400V2	Dimensions:	L1400W420H168mm
Guidance:	Magnetic Guidance	Travel Direction:	Forward, Left/right Turning & U Turn
Type:	Ultra Low Type	Height:	168mm
Guiding Accuracy:	±10mm	Driving Mode:	Differential Driving
Travel Speed:	0-45m/min(Or Customizing))	Load Capacity:	500kg
High Light:	automated guided carts , smart cart agv

Heavy Duty Automated Guided Cart Single Way Track Guidance Tunnel Type for Dark Factory

1. Product Description:

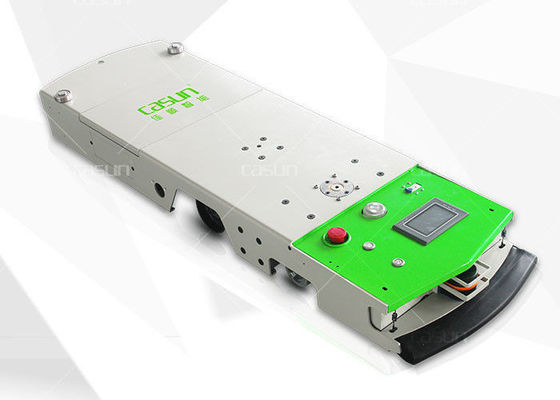

Single-way tunnel type AGV (ultra- low type) is the lowest height AGV in the world, the height is lowering to 168mm ( lower than a football’s 200mm height) and is praised as a submarine among AGVs. It is very suitable for the customers who have special height requirement.

2. Application:

The AGV lurks under the trolley , rise or lower the drawbar automatically to articulate or hang off the skip and widely used in electrical home appliance and electronic industries.

Heavy Duty Automated Guided Cart Single Way Track Guidance Tunnel Type for Dark Factory

3. Specifications:

Product name	Heavy Duty Automated Guided Cart Single Way Track Guidance Tunnel Type for Dark Factory (Ultra Low Type)
Model	QFL1400V2
Dimensions	L1400W420H168mm
Load capacity	500Kg
Minimum turning radius	min 800mm
Guidance	Magnetic guidance
Travel Direction	Forward, left/right turning & U turn
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type

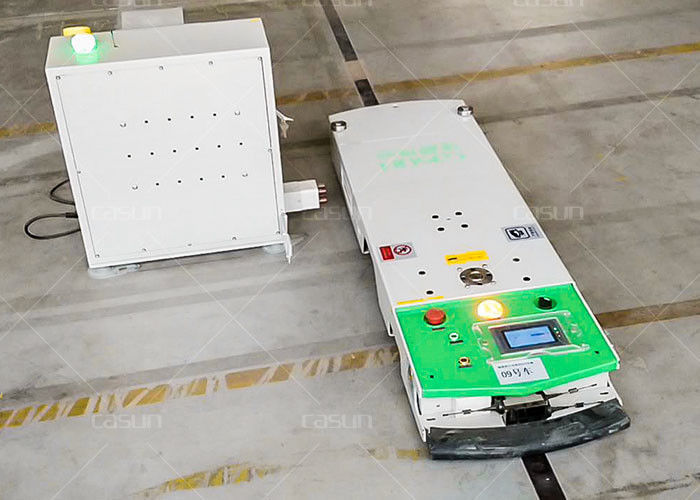

Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm
