    Product Details:

    Place of Origin: China, Shenzhen
    Brand Name: CASUN
    Model Number: BFJ1500V2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD
    Packaging Details: Wooden case
    Delivery Time: 35 days
    Supply Ability: 200 units / month
    Contact Now
    Detailed Product Description
    Model: BFJ1500V2 Dimensions: L1500*W800*H765(mm)
    Load Capacity: 1200kg Travel Speed: 0-45m/min(Or Customizing))
    Travel Direction: 360°Omni-directional Driving Power: DC24V
    High Light:

    industrial mobile robots

    ,

    autonomous guided vehicle

    Omni Directional Magnetic Tape AGV Tunnel Type with Lifting Platform AGV



    1. Product Description:



    Omni-directional lifting Platform AGV: The material can be lifted to the set height and transported to the support plate, and the space required for running is small. In a narrow space environment, the normal AGV can not complete the docking work, and its 360-degree rotation function can meet the requirements of setting different angles running on site, and effectively utilize the on-site space. Mainly suitable for environment with small space and heavy lifting required.





    2. Application:



    This AGV is customized project for a cold supply chain logistic transportation. Widely used in intralogistics system.





    3. Specifications:



    Product name Omni Direction Tunnel Type with Lifting Platform AGV
    Model BFJ1500V2
    Dimensions L1500*W800*H765(mm)
    Load capacity 1200kg
    Minimum turning radius 0, Omni-directional driving
    Guidance Magnetic guidance
    Travel Direction 360°Omni-directional driving
    Travel speed 0-45m/min(Or customizing))
    Guiding accuracy ±10mm
    Stopping accurac ±10mm
    Communication available RF / Wifi
    Driving mode Differential driving
    Power DC24V
    Workable 24 hours by optimizing automatic charging
    Ramp ≤2°
    Type Lifting platform
    Charging method Manual charging / automatic charging
    Battery Lead acid battery / lithium battery
    Life time ≥10 years
    Alarm Sound and visual
    Safety features Front obstacle sensor+mechanical bumper sensor
    Safety induction range Detecting range ≤3m, adjustable; Emergency braking distance: <20mm





    4. Advantages:

    • Omni directional lifting
    • Automatic scanning barcode when AGV rotate 360 degree
    • Able to work in a narrow space

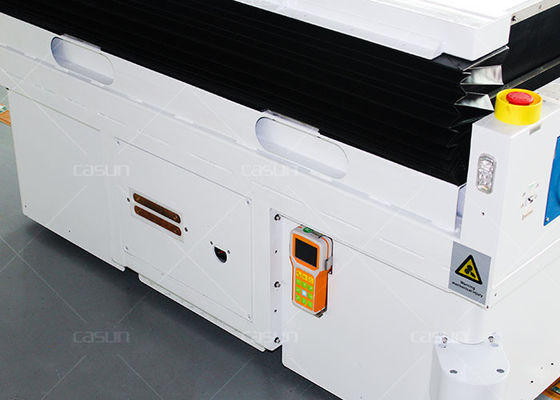

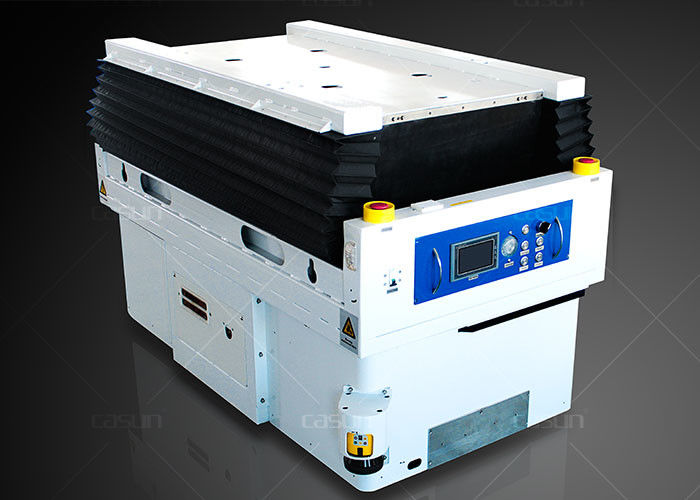

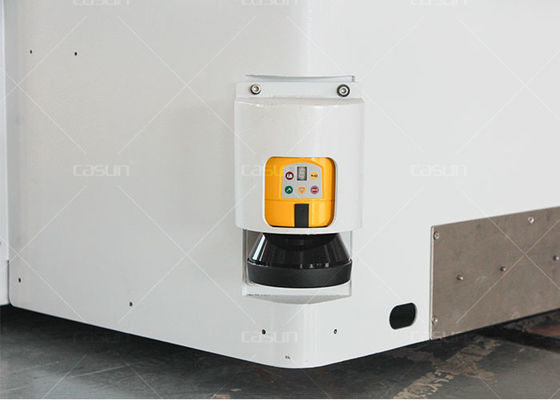

    Lifting Type Magnetic Tape AGV Auto Guided Vehicle With 360 Degree Rotation Function
